รายละเอียดสินค้า
สถานที่กำเนิด: Changsha, Hunan, China
ชื่อแบรนด์: Elacera
ได้รับการรับรอง: ISO9001-2015
หมายเลขรุ่น: เซรามิกอลูมินา
เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ: ต่อรองได้
ราคา: สามารถต่อรองได้
รายละเอียดการบรรจุ: บรรจุในกล่องไม้หรือชั้นวางเหล็ก
เวลาการส่งมอบ: 25-45 Workdas
เงื่อนไขการชำระเงิน: ที/ที
สามารถในการผลิต: 100,000 ㎡/ ปี
ความต้านทานการกัดกร่อน: |
สูง |
ชื่ออื่น: |
เซรามิกที่ทนต่อการเสียดสี |
Vickers Hardness: |
900HV10 |
แรงอัด: |
2500 MPa |
ความต้านแรงดึง: |
300 MPa |
ความเหนียวแตกหัก: |
3 ถึง 5 MPa·m^0.5 |
พิมพ์: |
แหวนเซรามิก |
บรรจุุภัณฑ์: |
ปรับแต่ง |
บริการแปรรูป: |
ตัด เจาะ ปั้น |
ความแข็ง: |
โมห์สสเกล 9 |
ความต้านทานการกัดกร่อน: |
สูง |
ชื่ออื่น: |
เซรามิกที่ทนต่อการเสียดสี |
Vickers Hardness: |
900HV10 |
แรงอัด: |
2500 MPa |
ความต้านแรงดึง: |
300 MPa |
ความเหนียวแตกหัก: |
3 ถึง 5 MPa·m^0.5 |
พิมพ์: |
แหวนเซรามิก |
บรรจุุภัณฑ์: |
ปรับแต่ง |
บริการแปรรูป: |
ตัด เจาะ ปั้น |
ความแข็ง: |
โมห์สสเกล 9 |
Product Description

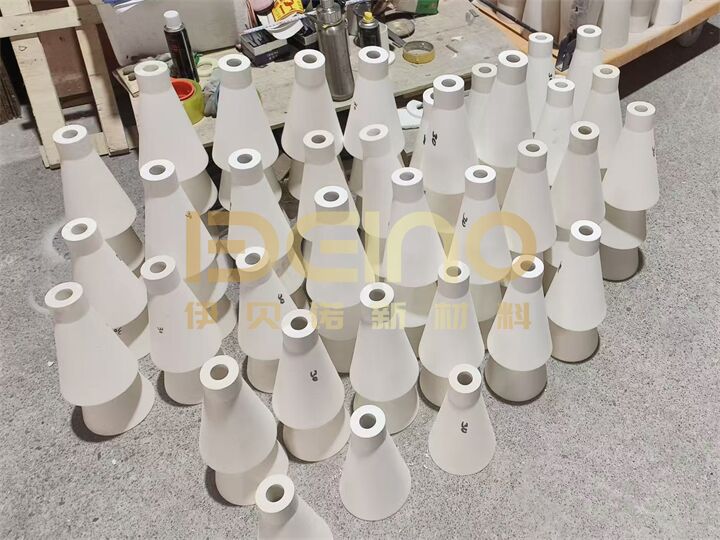

The wear-resistant alumina ceramic sleeve is designed for severe abrasion conditions in pneumatic conveying systems. It is widely used in cement, steel, thermal power, port, chemical, mining, coal, and engineering machinery industries. The sleeve adopts a three-layer composite structure comprising a steel pipe, an adhesive, and a 95% alumina ceramic lining, providing excellent wear and corrosion resistance and a long service life.
Product Features
• 95% high purity alumina ceramic lining
• Hardness up to HRA85-88
• Density ≥3.8 g/cm³
• Ceramic thickness 5-15mm
• 304 stainless steel or Q235 steel pipe
• Working temperature up to 150℃
• Smooth inner wall reduces blockage
Product Advantages
Longer Service Life
Under the same working conditions, the service life is 4-5 times longer than ordinary steel pipes.
Reduce Maintenance Cost
Super wear resistance reduces shutdown frequency and maintenance expenses.
Prevent Material Contamination
Ceramic lining prevents contact between powder and steel, avoiding iron contamination.
Smooth Conveying
Smooth ceramic inner surface reduces material hanging and blockage.
Comparison Table
| Item | Ceramic Sleeve | Steel Pipe |
|---|---|---|
| Service life | 4-5 times longer | Short |
| Wear resistance | Excellent | Poor |
| Maintenance frequency | Low | High |
| Contamination risk | None | High |
| Cost over time | Lower | Higher |
| Installation weight | Light | Heavy |
Technical parameters
| Items | Specifications | |
| Content of alumina | ≥92% | ≥95% |
| Density | ≥3.6 g/cm3 | >3.8g/cm3 |
| Rockwell A hardness | ≥82HRA | ≥85HRA |
| Impact strength | ≥1200 MPA | ≥1500 MPA |
| Fracture toughness | ≥3.8MPa·m1/2 | ≥4.0MPa·m1/2 |
| Vickers hardness | ≥1150HV10 | ≥1200HV10 |
| Bending Strength | ≥290MPa | ≥330MPa |
Production Process&Equipment
The company has kiln production lines, vulcanizers, isostatic presses, automatic presses, spray drying towers, CNC cutting machines, lathes, punching machines, milling machines, sawing machines, radial drilling machines, gas-shielded welding, intermediate-frequency pipe-bending machines, etc., equipment. We have formed a certain scale of production capacity.
Application Industries
• Cement plant conveying pipelines
• Steel plant powder conveying
• Thermal power ash conveying
• Port bulk material transport
• Chemical powder pipelines
• Mining conveying systems
• Coal transport pipelines
• Engineering machinery pipelines
Why Choose Us?
Our ceramic wear tiles are made from high-quality ceramic materials and have been designed to provide superior wear resistance in highly abrasive environments. We offer a wide range of sizes and shapes, making it easy for you to find the right ceramic wear tiles for your application. We are committed to providing our customers with the highest quality products and exceptional customer service. Our team is always available to answer your questions and help you find the right ceramic wear tiles for your specific needs.
What is an alumina ceramic sleeve used for?
Alumina ceramic sleeves are mainly used to protect pipelines from severe abrasion caused by powder, ash, cement, coal, and mineral materials. They are widely applied in pneumatic conveying systems in cement, steel, mining, and power plants.
Why choose an alumina ceramic sleeve instead of a steel pipe?
Ceramic sleeves provide significantly higher wear resistance than steel pipes. Their hardness is close to diamond level, and the smooth ceramic inner wall reduces friction and extends service life.
How long does a ceramic sleeve pipeline last?
Under the same working conditions, alumina ceramic sleeve pipelines typically last 4–5 times longer than conventional steel pipes, reducing replacement frequency and downtime.
What industries use ceramic-lined pipes?
Most wear-resistant ceramic sleeves use 95% high purity alumina, which provides high hardness, corrosion resistance, and excellent abrasion resistance.
Can ceramic sleeves reduce maintenance costs?
Yes. Due to its high wear resistance, ceramic sleeve pipelines reduce maintenance frequency, labor cost, and production downtime, improving overall system efficiency.
Will the ceramic lining fall off during operation?
High-strength epoxy adhesive and integrated sintered ceramic rings ensure strong bonding between ceramic and steel pipe. When properly installed, the ceramic lining remains stable during long-term operation.
What is the working temperature of the ceramic sleeve?
Standard alumina ceramic sleeve pipelines can operate continuously up to about 150°C, meeting most pneumatic conveying requirements
Which part of the pipeline needs the ceramic sleeve the most?
Elbows and high-speed material impact areas experience the most severe wear and are the primary locations where ceramic sleeves are recommended.
